VFFS packing machine systems are commonly used during the packaging process, Do you know how to choose the right vffs machine system to elevate your packaging efficiency with minimum total use cost?
Let us find out the regular 5 types of VFFS machine systems.
Table of Contents

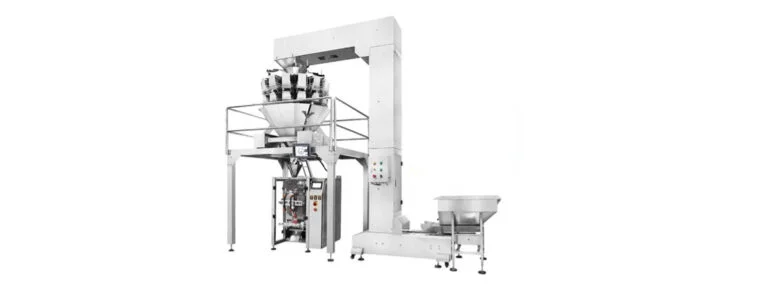

Multihead weigher VFFS packing Machine
Machine included:
- Multihead weigher ( available for 10/14/16/18/24 head with various volumes of hopper)
- VFFS packing machine (from 320 to 920mm max film width)
- Feeding conveyor
- Output conveyor (Optional)
- Rotary Table (Optional)
- Metal detector (Optional)
- Checker weigher (Optional)
Application:
- Granule products
- Dry fruit
- Snack
- Biscuit
- Candy
………………..
Max Speed:
- 70ppm (10 head weigher VFFS system)
- 120ppm (14 head weigher VFFS system)
- 160ppm (16/18/24 weigher with continuous motion VFFS system)
Main Benefits
- High speed: Max Speed up to 160ppm, greatly elevating packaging efficiency.
- Great versatility: Suitable for various kinds of product packaging on one machine.
- High precision: Accuracy best less than +- 0.1g, reduce waste and save cost.
- Flexible changeover: Fast and easy, reduce downtime within 15 minutes.
- Ease of use: Direct setting via HMI, quick Switching to different products or SKU packaging.
Best Choice For
- High production capacity factory
- High accuracy demand
- Multiple SKU product packaging
Linear weigher VFFS packing machine
Machine included:
- Linear Weigher ( available for 1/2/4 head with various volume of hopper)
- VFFS packing machine (from 320 to 920mm max film width)
- Feeding conveyor
- Output conveyor (Optional)
- Rotary Table (Optional)
- Metal detector (Optional)
- Checker weigher (Optional)
Application:
- Rice
- Bean
- Sugar
- Salt
- Biscuit
- Candy
………………..
Max Speed:
- 10ppm (1 head linear weigher VFFS system)
- 15ppm (2 head weigher VFFS system)
- 25ppm (4 head weigher VFFS system)
Main Benefits
- Compact: Save space, easy to fit any size of factory facility
- Affordable Budget: Friendly for startup businesses or lower packaging capacity
- Easy to operate: Simply operation panel, easy to learn and operate
- Flexible changeover: Fast and easy, reduce downtime within 10 minutes.
- Ease of use: Direct setting via HMI, quick Switching to different products or SKU packaging.
Best Choice For
- Start-up business
- Space-limited factory facility
- Less expertise operator

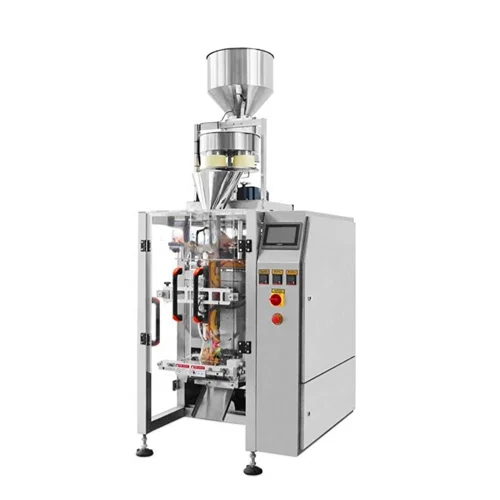

Cup filler VFFS packing machine
Machine included:
- Cup filler ( available for 4/6 cup filling machine with various cup volume
- VFFS packing machine (from 320 to 920mm max film width)
- Vibration feeder
- Feeding conveyor (Optional)
- Output conveyor (Optional)
- Rotary Table (Optional)
- Metal detector (Optional)
- Checker weigher (Optional)
Application:
- Rice
- Bean
- Sugar
- Spice
- Salt
- Nuts
………………..
Max Speed:
- 40ppm (4 cup filling VFFS system)
- 60ppm (6 cup filling VFFS system)
Main Benefits
- Simple structure: Easy to operate and maintain, low total using cost
- Flexible changeover: Modular measuring cup, easy to adjust and replace, reduces machine downtime.
- Cost & performance effective: Affordable packaging system meanwhile providing medium range packaging speed.
- Compact: Less space occupied, friendly for any size of packaging production facility.
Best Choice For
- Start-up business
- Space-limited factory facility
- Granule-type product packaging
- Less sensitive to packaging accuracy.
Auger filler VFFS packing Machine
Machine included:
- Auger filler ( all types of sizes and shapes of screws for various density powder)
- VFFS packing machine (from 320 to 920mm max film width)
- Auger conveyor Or vacuum conveyor
- Output conveyor (Optional)
- Rotary Table (Optional)
- Metal detector (Optional)
- Checker weigher (Optional)
Application:
- Spice powder
- Milk powder
- Coffee powder
- Wheat flour
………………..
Max Speed:
- 40ppm (Depending on the characteristic of the powder, product filing and falling into the packaging bag take much longer time compared to non-powder product)
Main Benefits
- Versatility: Customized auger screws, can used for packaging various types of powder products.
- Open structure: Auger filler adopts an open frame design, friendly for maintenance.
- Flexible changeover: Auger screw is easy to attach to the auger filler, reducing downtime.
- Hygiene: Dust removing device, remain dust-free working environment.
Best Choice For
- Powder products
Liquid Filler VFFS packing machine
Machine included:
- Liquid filler ( Piston Filler, Rotor Pump Filler)
- VFFS packing machine (from 320 to 920mm max film width)
- Output conveyor (Optional)
Application:
- Tomato Sauce
- Peanut Jam
- Honey
- Cream
………………..
Max Speed:
- 30ppm ( Depending on product viscosity and packaging weights)
Main Benefits
- Versatility: Piston Pump Filler or Rotor Pump Filler for choice, easy to handle all kinds of viscosity sauce and jam.
- Hygiene: Food grade 304 or 316 stainless steel machine parts, reduce contamination.
- Compact: Small footprint, easy to install and use.
Best Choice For
- Liquid products
Conclusion
Do you have a better understanding of Multihead weigher VFFS packing Machine, Linear weigher VFFS packing machine, Cup filler VFFS packing machine, Auger filler VFFS packing Machine, Liquid Filler VFFS packing machine?
To summary,
For solid or granule products.
- You can choose a multihead weigher VFFS system for high speed and accuracy purposes.
- If you are looking for medium accuracy and packaging capacity, The linear weigher VFFS machine will be your ideal choice.
- If you are seeking an economic solution and a less accurate solution, then you can choose the cup filler VFFS machine system.
For powder products, undoubtedly you should choose the auger filler vffs machine system, and for liquid filler vffs machine system will be your best choice for liquid packaging.
If you would like to know more about the VFFS packing machine system, you are most welcome to contact us here, our expert will be very glad to share their insight with you.
