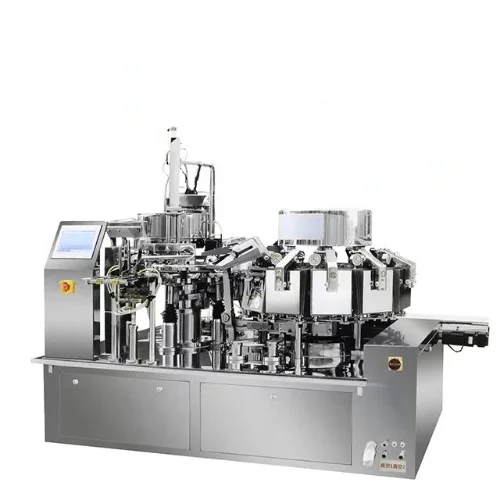

Rotary Vacuum Premade Pouch Packing Machine

High speed premade pouch packaging machine with superior vacuum performance
SPEEDS UP TO 40 BPM

Machine Introduction

Rotary vacuum premade pouch packing machines are an efficient and high-speed way to package products in a vacuum state.

This type of packaging helps improve the shelf life of food items by creating tightly sealed packages. It is also able to work quickly, allowing for mass production capabilities.

The rotary vacuum premade pouch packer features two rotating tables. The first is used for loading the pouches, while the second has a vacuum chamber to ensure a tight seal.

This machine can accommodate all kinds of pre-made pouches, including flat and standup varieties as well as 3- and 4-side sealed varieties with or without zippers.

Those who are looking for a reliable, high-speed and versatile packaging solution should consider the rotary vacuum premade pouch packing machine. It is the perfect choice for creating airtight packages, with no need to worry about product contamination or de-lamination. With its easy operation and fast production speeds, this machine is sure to be a great choice.

Superior vacuum premade pouch packaging machine greatly improve your product shelf life
High speed vacuum packaging machine for Cooked food , Pickles , etc.

Max Speed

40mpbm

Bag Size

Min
60mm W x 100 mm L

Max
250mm W x 350 mm L

Features

  • Rotary and vacuum turntable
  • Food grade 304 stainless steel material
  • Compatible with all kind of premade pouch style
  • Siemens PLC control
  • Great accessibility frame
  • Easy to set bag size on touch screen directly
  • Pouch detection – no filling, no sealing
  • Two step sealing process guarantees clean sealing
  • Excellent vacuum effect

Options

  • Horizontal Bag feeder
  • Date printer
  • Hole punching device
  • Zipper open device
  • Belowing bag function
  • Air compressor
  • Dustproof cover
  • Check weigher
  • Infeed and take away conveyors
  • Integrate with various model of different kind of filling and weighing machine

Specifications

Model NoR200R250
Working Station88
Packing Bag SizeL: 100-350mm W : 60-200mmL: 100-350mm W : 80-250mm
Packing Speed16-60 Bags/min (depending on products character and filling volume)16-60 Bags/min (depending on products character and filling volume)
Air Compressed consumption≤0.6m³ / min≤0.6m³ / min

Auxiliary Machine​

Features

  • Vacuum machine included two rotary table, filling table and vacuum table
  • Instant heating and water cooling sealing guarantee nice packaging effect
  • Food grade 304ss contact parts
  • Storage setting
  • High sensitive color HMI
  • Photo eye detection

Options

  • Rotary filling table for manual infeed product
  • Different type of conveyor for feeding
  • Weighing and filling machine for various products.

Video​

Rotary vacuum packing machine manufacturer

Industry​

Bag style

automate your packaging process - fast, accurate and efficient
