Machine Introduction

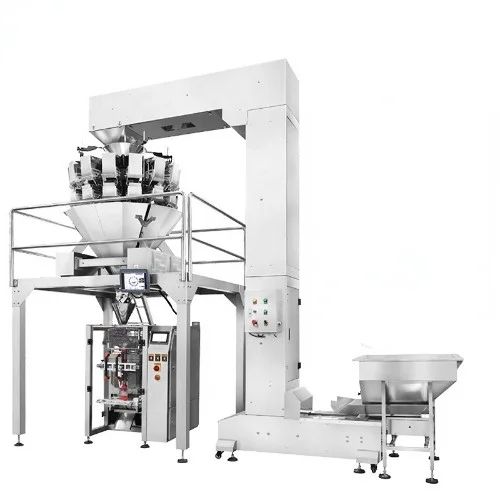

Multihead weigher packing machines are a popular choice for the snack, candy, and biscuit packaging industry.

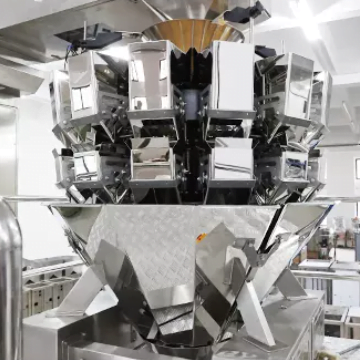

These types of machines come in various models with different numbers of heads, ranging from basic 10-head to high speed 16/18/24/32 head combination weighers.

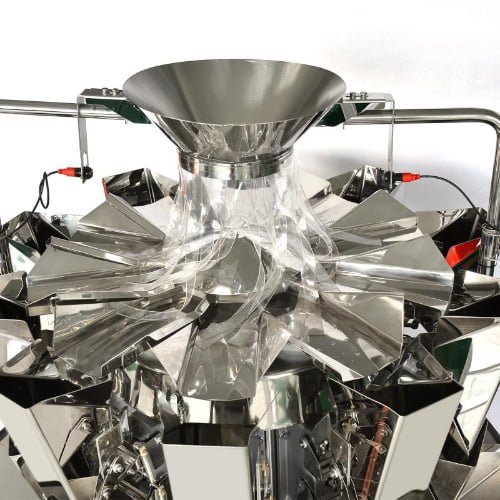

The volume of each weigher bucket can range from 0.1 liters to 7.5 liters and the type of machine chosen will depend on the desired packaging speed and target weight. Generally, a higher number of heads means faster packing speeds;

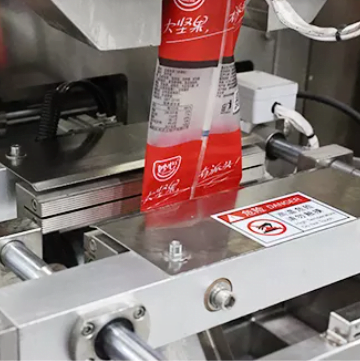

However, it is important to ensure that the combination weigher can keep up with the speed of the vertical form fill seal packaging machine.
When selecting a multihead weigher packing machine, it is essential to consider the performance of the entire system, including the weight accuracy and speed requirements of each machine.
This will help guarantee that all machines are operating in harmony and at optimum efficiency. With careful selection and consideration, you can achieve high quality packaging with maximum productivity.
100bpm
Min
50 mm x 50 mm
Max
450mm x 450 mm
| Model | WP-320 | WP-420 | WP-520 | WP-720 | WP-920 |
|---|---|---|---|---|---|
| Film Width | 120-320mm | Max.420mm | Max.520mm | Max 720 mm | Max 920 MM |
| Bag Length | 50-200mm | 80-300mm | 80-300 MM | 80-370 mm | 80-450 mm |
| Bag Width | 50-150mm | 60-200mm | 60-250 MM | 60-350 mm | 60-450 MM |
| Range ofMeasurement | 50-500ml | 150-1500ml | 50-3000 ML | 50-5000ML | 50-10000 ML |
| Film RollDiameter | Max.320mm | Max.420mm | Max 520 mm | Max 720 mm | Max 920 mm |
| PackagingRate | 35-70Bag/min | 35-70Bag/min | 35-70Bag/min | 35-70Bag/min | 35-70Bag/min |
