Liquid Filler Multi Lane Stick Pack Packaging Machine

Versatile liquid stick pack machine
Max speed upto 50cycle per min

Machine Introduction

Packwaytechno’s automatic liquid multi lane stick pack machine is suitable for packaging high viscosity liquids such as mayonnaise, mustard, shampoos, toothpaste, cosmetic creams and other syrups or ointments. It can also be used to package semi-liquid gels and various food products like ketchup, tomato paste, sauces and honey.

The easy open tear notch function allows for easy opening of the package, making it both convenient and user-friendly. It can be made with anywhere from 4 to 12 lanes, producing a maximum of 60 cuts per lane depending on the nature of the liquid.

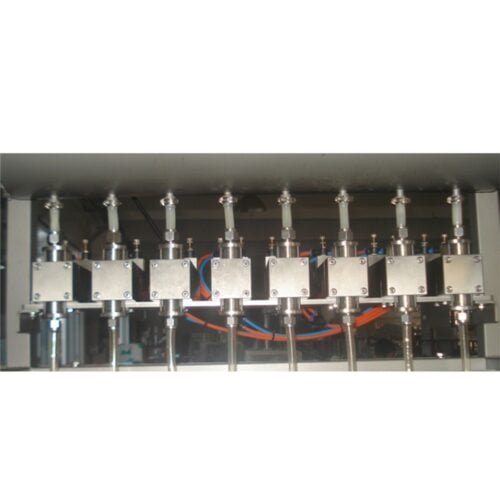

The stick pack machine integrated with precision servo motor-driven piston pumps with cut-off nozzles to ensure that the product is accurately filled with zero leaking. It also has a great accessibility for maintenance and cleaning purposes, reducing downtime.

This machine is also highly reliable, efficient and cost-effective. It is an ideal solution for the high-volume production of liquid packaging that requires accurate dispensing, superior quality, and reliable speed. With its advanced technology, Packwaytechno’s multi lane liquid filler ensures your products are safely packaged to the highest standards

Ease of use and high speed packing machine for stick package
Applicable for various liquid included pure water, paste, cream .honey etc upto 50cycly per min

Max Speed

50 cycle per min

Bag Size

Min
16 mm x 40 mm

Max
90mm x 165 mm

Features

  • Hygiene 304ss material
  • Siemens PLC control system
  • Servo motor control
  • Multiple  product recipes storage
  • Film slitters and forming tubes
  • Discharge chutes
  • Photo eye sensor
  • Multi language HMI operation
  • Quick changeover
  • Open frame design with great accessibility

Options

  • Straight /Zigzag /Round cut
  • Hope punching
  • Easy open tear notch
  • Multi-lane volumetric cup filler, servo auger filler or servo liquid fillers
  • Various seal patterns and shapes
  • Dust suction nozzles
  • Static elimination
  • Date Printer
  • Ari compressor

Specifications

Lanes4-lanes6-lanes8-lanes10-lanes12-lanes
Bag width16-90mm16-60mm16-45mm16-35mm16-30mm
Bag length40-165mm40-165mm40-165mm40-165mm40-165mm
Package styleback sealing/stick bagback sealing/stick bagback sealing/stick bagback sealing/stick bagback sealing/stick bag
Packaging Capacity30-60bags/min/lane30-60bags/min/lane30-60bags/min/lane30-60bags/min/lane30-60bags/min/lane

Auxiliary Machine​

Features

  • Flexible for integration with liquid filler
  • Food grade 304ss contact parts
  • High precision filling with servo drive filler
  • Quick changeover
  • Easy to maintain

Options

  • Storage hopper
  • Piston liquid pump
  • Stirring device
  • Heating device
