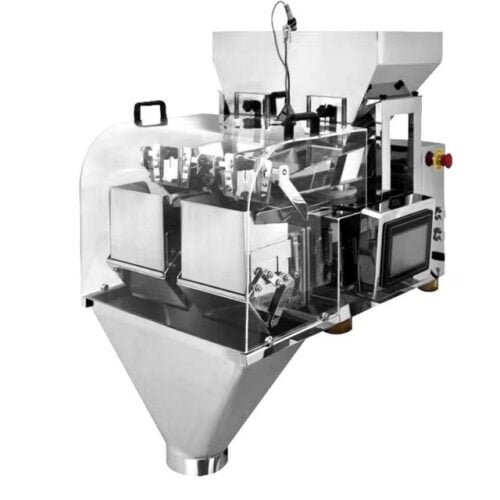

Machine Introduction
The linear weigher vertical packaging machine is ideal for those starting a business or small-scale businesses.
It offers a low-cost and mid speed solution to packaging a wide range of loose products, granulated products such as sugar, rice, and beans. Linear weighers come in various models with 1/2/4/6 heads and buckets of different volumes, ranging from 1.6 liters to 10 liters – and even custom larger sizes.
Depending on the needs of a particular packaging job, vffs machine will be integrated with different models of linear weigher according to its speed and target weight for the product being packaged.
If you need an efficient solution for packing items such as coffee beans, sugar or rice in bulk bags of up to 20 kg, then the linear weigher is a great option for both its financial and production capacity returns.
40bpm
Min
50 x 50 mm
Max
450 x 450 mm
| Model | WP-320 | WP-420 | WP-520 | WP-720 | WP-920 |
|---|---|---|---|---|---|
| Film Width | 120-320mm | Max.420mm | Max.520mm | Max 720 mm | Max 920 MM |
| Bag Length | 50-200mm | 80-300mm | 80-300 MM | 80-370 mm | 80-450 mm |
| Bag Width | 50-150mm | 60-200mm | 60-250 MM | 60-350 mm | 60-450 MM |
| Range ofMeasurement | 50-500ml | 150-1500ml | 50-3000 ML | 50-5000ML | 50-10000 ML |
| Film RollDiameter | Max.320mm | Max.420mm | Max 520 mm | Max 720 mm | Max 920 mm |
| PackagingRate | 35-70Bag/min | 35-70Bag/min | 35-70Bag/min | 35-70Bag/min | 35-70Bag/min |
