Linear Weigher Horizontal Premade Pouch Packaging Machine

Versatile horizontal premade pouch packaging machine
SPEEDS UP TO 40 BPM

Machine Introduction

The Linear Weigher Horizontal Premade Pouch Packaging Machine is an ideal choice for bulk packaging of various materials such as beans, rice and nuts.

This automated device can be set up with 1/2/4 heads and 15-liter buckets, allowing for mid-speed horizontal doypack packaging. The number of heads on the linear weigher affects its speed, so it’s important to consider the necessary packaging capacity when choosing the right machine that integrates efficiently with the pre-made pouch packaging system.

As the performance of the entire system hinges on all machines, rather than any single one, it is necessary to evaluate the desired packaging speed, product target weight and other components.

Moreover, the horizontal doypack machine is suitable for all types of pre-made pouches such as stand up pouches, side gusset bags, flat bottom or zipper pouches.

It comes with a user friendly touchscreen control system that offers multiple language support. This automated machine can complete pouch filling and sealing in one go, helping to reduce labor costs and minimize material waste.

Compact and efficient horizontal premade pouch packaging machine
Favourable packaging solution for premade pouch in coffee, sugar , bean industry upto 30pouch/min

Max Speed

30mpbm

Bag Size

Min
80mm W x 110 mm L

Max
260mm W x 380 mm L

Features

  • Food grade 304 stainless steel material
  • Compatible with almost all premade pouch style
  • Siemens PLC control
  • Great accessibility frame
  • Easy to set bag size on touch screen directly
  • Pouch detection – no filling, no sealing
  • Two step sealing process guarantees clean sealing

Options

  • Horizontal Bag feeder
  • Date printer
  • Zipper open device
  • Nitrogen filling device
  • Exhausting device
  • Hopper vibration
  • Bag-bottom vibration
  • Belowing bag function
  • Metal Detector
  • Check Weigher

Specifications

ModelWPT-160WPT-210WPT-260
Speed5-50bag/min5-50bag/min20-50bag/min
Power2kw2kw3.5kw
Bag sizeW:80-160mm
L:110-240mm
W:110-160mm
L:110-280mm
W:120-260mm
L:120-380mm
Packaging capacity10-200ml100-1000G50-1000ml
Air consumption0.7m3/min0.7m3/min0.7m3/min
Applicable bag style3/4 side sealing bag
paper bag,standup bag,
zipper bag
3/4 side sealing bag
paper bag,standup bag,
zipper bag
3/4 side sealing bag
paper bag,standup bag,
zipper bag

Auxiliary Machine​

Features

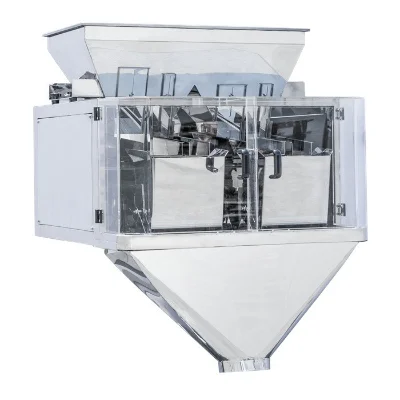

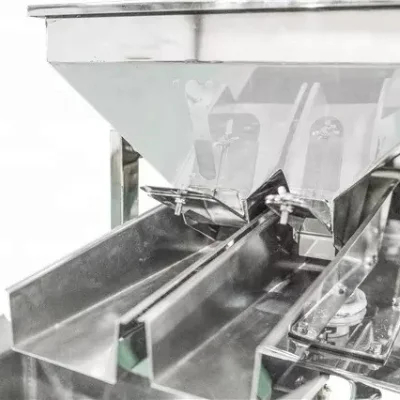

  • 1/2/4 head linear weigher, 1.6/2.5/5 /10 L volume buckets
  • Teflon coating & dimple plate for anti-sticky
  • Ring gate for infeed control.
  • Timming hopper
  • Waterproof protection
  • Dust cover

Options

  • Economic and efficient weighing machine
  • Strong vibration
  • Low noise running
  • Food grade 304ss contact parts
  •  storage setting
  • High sensitive color HMI
  • Photo eye detection

Video​

Coffee bean premade pouch packing machine

Industry​

coffee

Bag style
