Machine Introduction
Cup filler VFFS machines are suitable for various granular products, such as sugar, rice, beans, and more. This system can reach speeds up to 80 bags per minute. Although the accuracy is not as precise as multihead weighers or linear weighers, it is still a viable option for many applications.

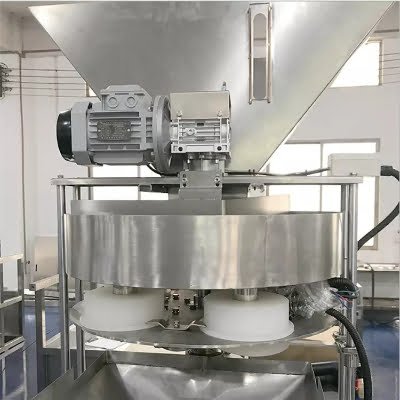

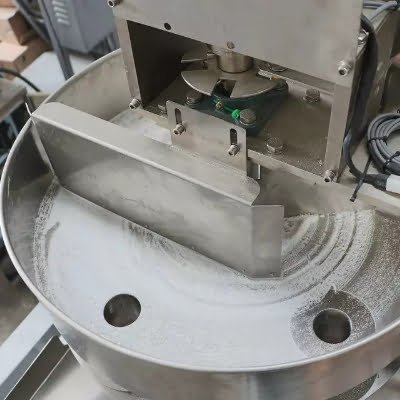

The cup filling machine works by using a rotating cup with an established volume to measure the target weight. If different package weights are required, extra cups of the corresponding volume must be used for the changeover.
The accuracy level depends on the product’s characteristics, such as size, shape, and bulk density. Even when using the same machine, accuracy may vary from product to product.
For best results, small and regular shaped items such as sugar, rice or washing powder should be used. This can provide an efficient and compact packaging machine solution.
80bpm
Min
50 x 50 mm
Max
450 x 450 mm
| Model | WP-320 | WP-420 | WP-520 | WP-720 | WP-920 |
|---|---|---|---|---|---|
| Film Width | 120-320mm | Max.420mm | Max.520mm | Max 720 mm | Max 920 MM |
| Bag Length | 50-200mm | 80-300mm | 80-300 MM | 80-370 mm | 80-450 mm |
| Bag Width | 50-150mm | 60-200mm | 60-250 MM | 60-350 mm | 60-450 MM |
| Range ofMeasurement | 50-500ml | 150-1500ml | 50-3000 ML | 50-5000ML | 50-10000 ML |
| Film RollDiameter | Max.320mm | Max.420mm | Max 520 mm | Max 720 mm | Max 920 mm |
| PackagingRate | 35-70Bag/min | 35-70Bag/min | 35-70Bag/min | 35-70Bag/min | 35-70Bag/min |
